THE PERFECT PARTNER
Ready for the city.

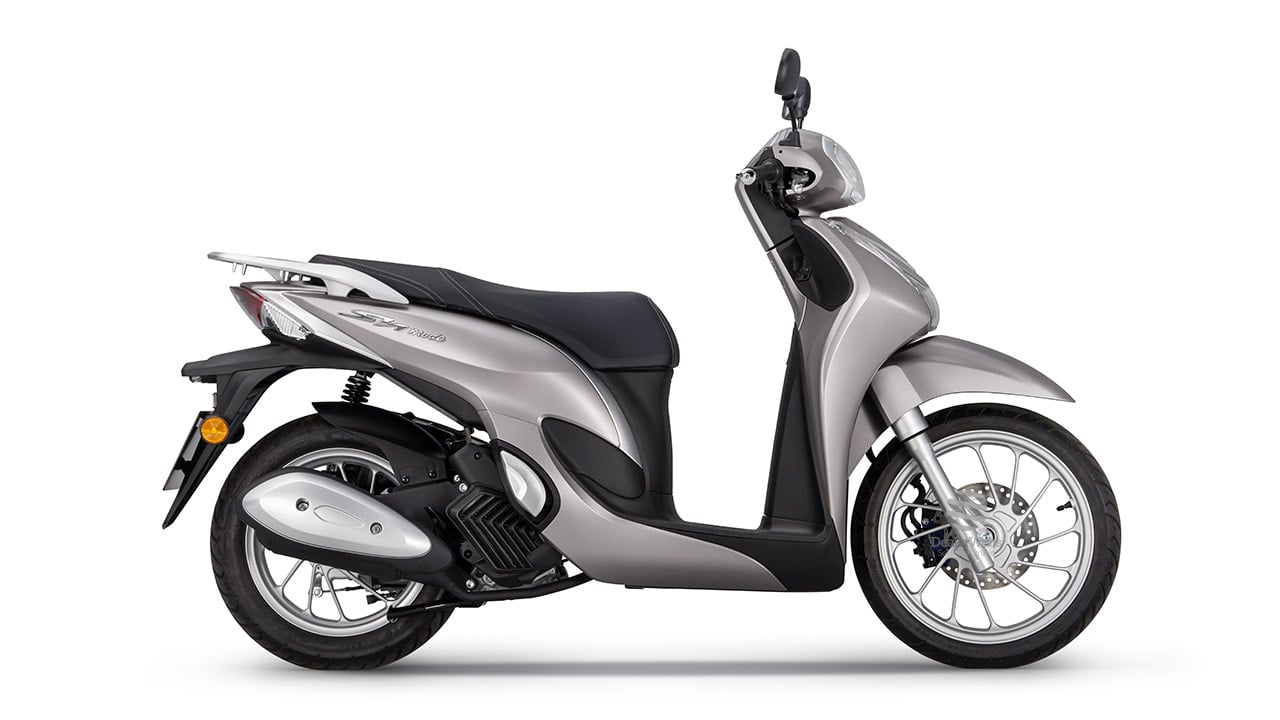

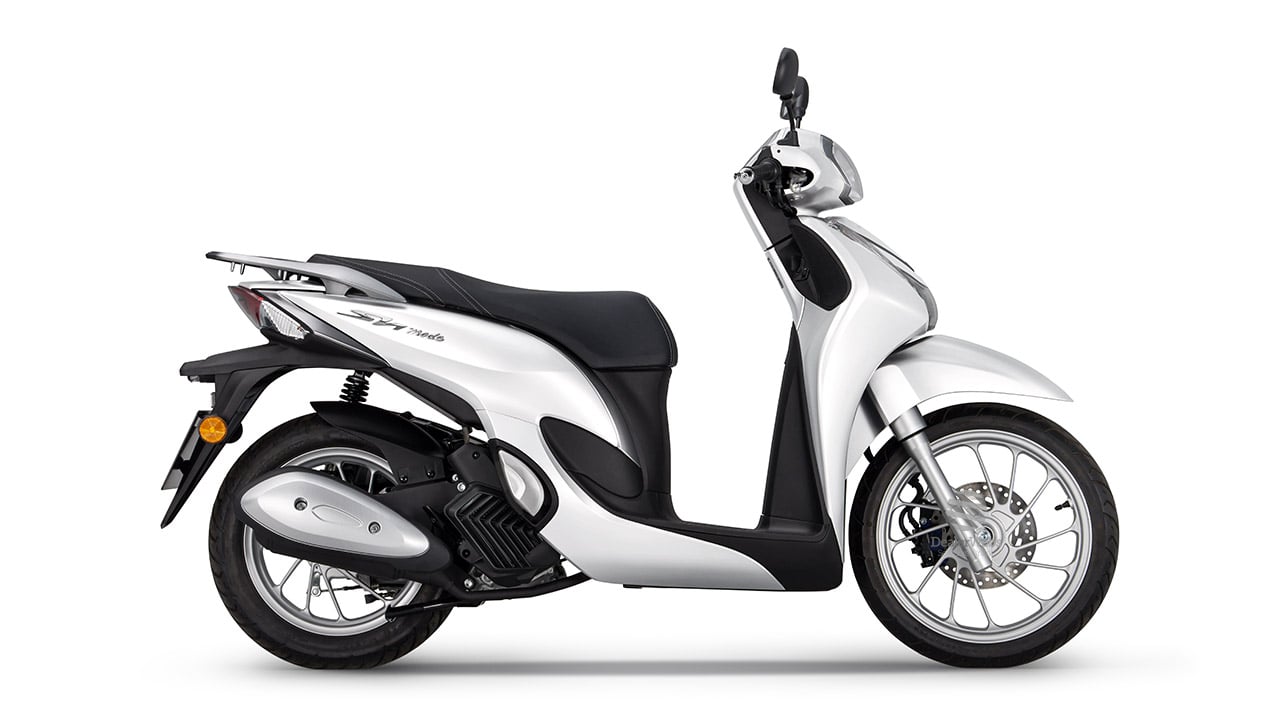

Based on the hugely popular SH125i, the compact size, smart bodywork and low running costs make the SH Mode 125 the perfect partner for busy urban life.
It’s all-new, too. Fully refreshed styling makes a self-assured statement of subtle elegance, with a premium LED headlight and extra leg room. There’s also more storage space under the seat, and a glovebox with USB Type-C socket. And, for one less thing to think about, we’ve added Smart Key operation – so you put the key in your pocket and ride.
The new enhanced Smart Power Plus (eSP+) engine produces more power, but is as smooth and easy to use as ever. It’s also fuel efficient and, thanks to EURO5 compliance, cleaner, too. A lighter steel frame and low, 765mm seat height make for maximum manoeuvrability while redesigned wheels use fuel-saving tyres.
SH STYLE & PRACTICALITY
It’s true, the sculpted lines of the SH Mode 125 make quite an impression. But, because it’s a member of our SH family, beautiful form also incorporates a great deal of practical functionality. The spacious flat floor features more leg room; there is also room for a full-face helmet under the seat and a handy glovebox with USB Type-C socket in the fairing, to keep your smartphone charging while you ride. For confident easy handling, supple suspension and cast aluminium 16-inch front and 14-inch rear wheels combine to smooth out rough city tarmac.
All-new styling, with increased storage and LED lighting
Still compact, easy to park and wriggle through tight traffic, but even more stylish with more leg room and a crisp LED headlight to lead the way. The under-seat storage compartment has expanded to 18.5L, enough for a full-face helmet and more; now there’s also a glovebox with built-in USB Type-C socket, for your mobile devices.
Smart Key operation for ignition and seat
This is a scooter built for convenience, so here’s one less thing to think about during a busy day – keep the key of the SH Mode 125 in your pocket, and ride. It will also lock the seat when you walk away.
Easy to use, enhanced Smart Power Plus (eSP+) water-cooled engine
Just wind on the throttle, and you’re off. This is an efficient, EURO5-specification engine designed for everybody to enjoy with a flat, linear response that gets you where you need to be, efficiently.
Lighter frame with new wheels and tyres
Constructed from pressed steel, the new frame is 8% lighter and, thanks to advanced engineering, offers good handling, stability, ride comfort and long-term durability. Sharply styled new wheels complement the scooter’s new look, and wear fuel-saving tyres.
Bore × Stroke (mm) | 53.5 × 55.5mm |
Carburation | PGM-FI electronic fuel injection |
Compression Ratio | 11.5 :1 |
Engine Displacement (cc) | 125 |
Engine Type | Single-cylinder, liquid cooled, SOHC 4-stroke |
Max. Power Output | 8.4 kW / 8,750rpm |
Max. Torque | 12.1Nm / 5000rpm |
Starter | Electric |
Oil Capacity (Litres) | 0.9L |
Brakes Front | 220mm hydraulic disc |
Brakes Rear | 130mm drum |
Suspension Front | Telescopic |
Suspension Rear | Unit swingarm |
Tyre Size Front | 80/90-16M/C 43P |
Tyre Size Rear | 100/90-14M/C 57P |
Wheels Front | Cast aluminium 16M/CXMT2.15 |
Wheels Rear | Cast aluminium 14M/CXMT2.75 |
Battery Capacity (VAh) | 12V-7Ah |
Caster Angle | 27° |
Dimensions (L×W×H) (mm) | 1950 X 670 X 1100 mm |
Frame type | Under bone |
Fuel Tank Capacity (Litres) | 5.5 litres |
Fuel Consumption | 47.6 km/L (50 km/L with Idle Stop) |
Ground Clearance (mm) | 150 mm |
Kerb Weight (kg) | 118 kg |
Seat Height (mm) | 765 mm |
Trail (mm) | 69.5 mm |
Wheelbase (mm) | 1305 mm |
Clutch | Automatic Centrifugal Clutch Dry Type |
Final Drive | V-Belt |
Transmission Type | CVT |
Headlights | LED |
Instruments | LCD with Speedometer, fuel gauge and time |
Tail Light | Bulb |
